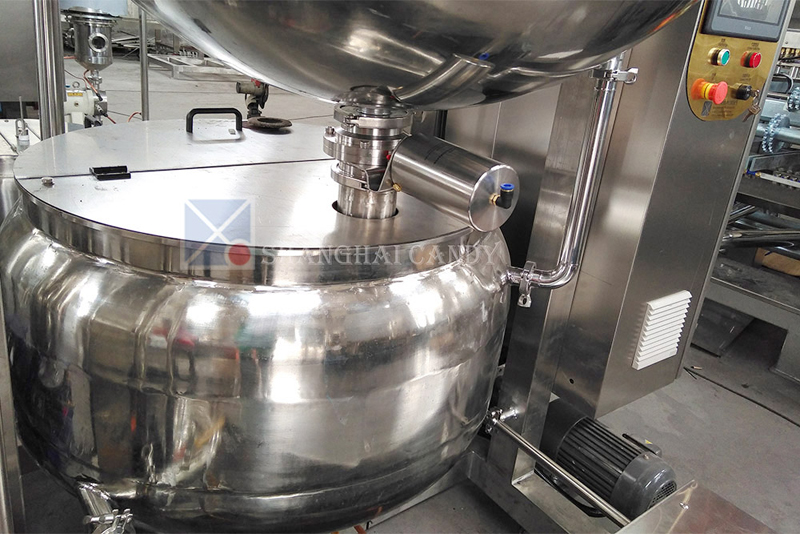

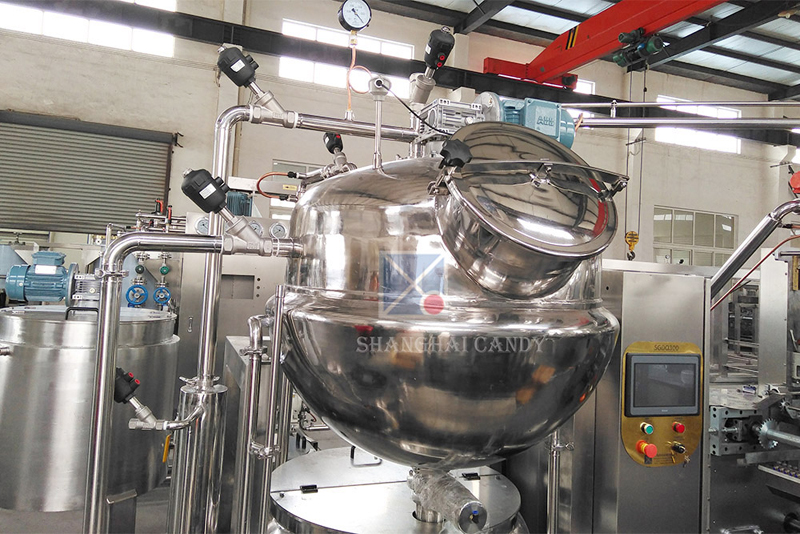

GDQ300 jelly candy cooker
This jelly candy cooker is specially designed for the high-quality gelatin based gummy. It has the jacketed tank with water heating or steam heating and equipped with the rotating scraper.
The syrup is pumped from the dissolver to the upper blending tank by vacuum, under this process, syrup moisture can be removed quickly and concentrated syrup temperature can be cooled down in short time. After reaching required temperature, transfer the prepared gelatin liquor into tank and mix with syrup. Fully mixed gelatin candy mass automatic flow into lower storage tank, ready for next process.
All the required data can be set and displayed on touch screen and all the process can be automatic controlled by PLC program.
Parameter:
Model | GDQ300 |
material | SUS304 |
Heating source | Electricity or steam |
Tank volume | 250kg |
Total power | 6.5kw |
Vacuum pump power | 4kw |
Overall dimension | 2000*1500*2500mm |
Gross weight | 800kg |
