Products
Intelligent lines make quality candies
One production line upholds ingenuity
Auto weighing and mixing machine
Candy bar cutting machine
Detail

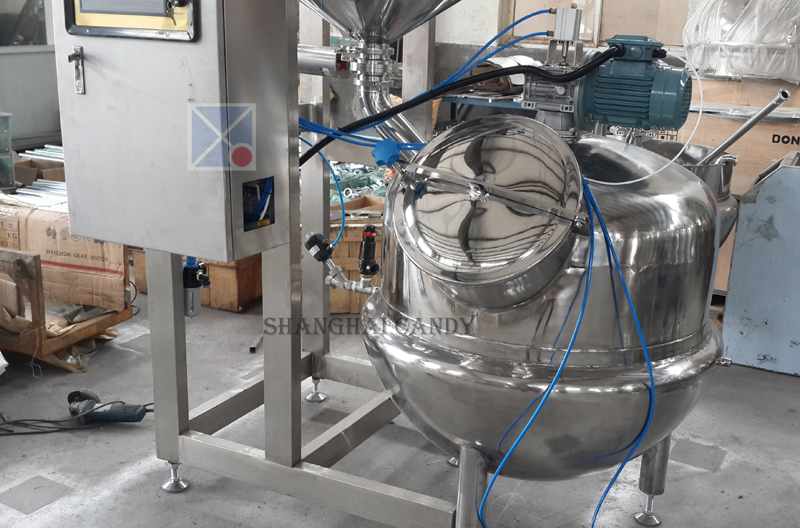

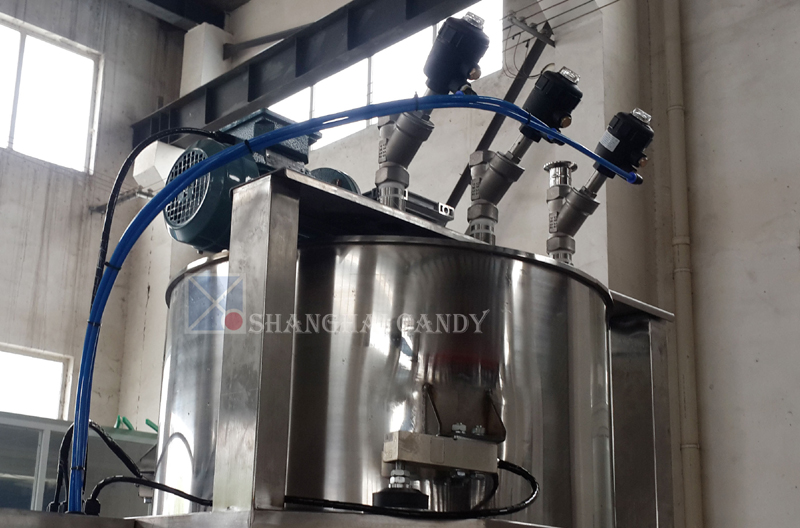

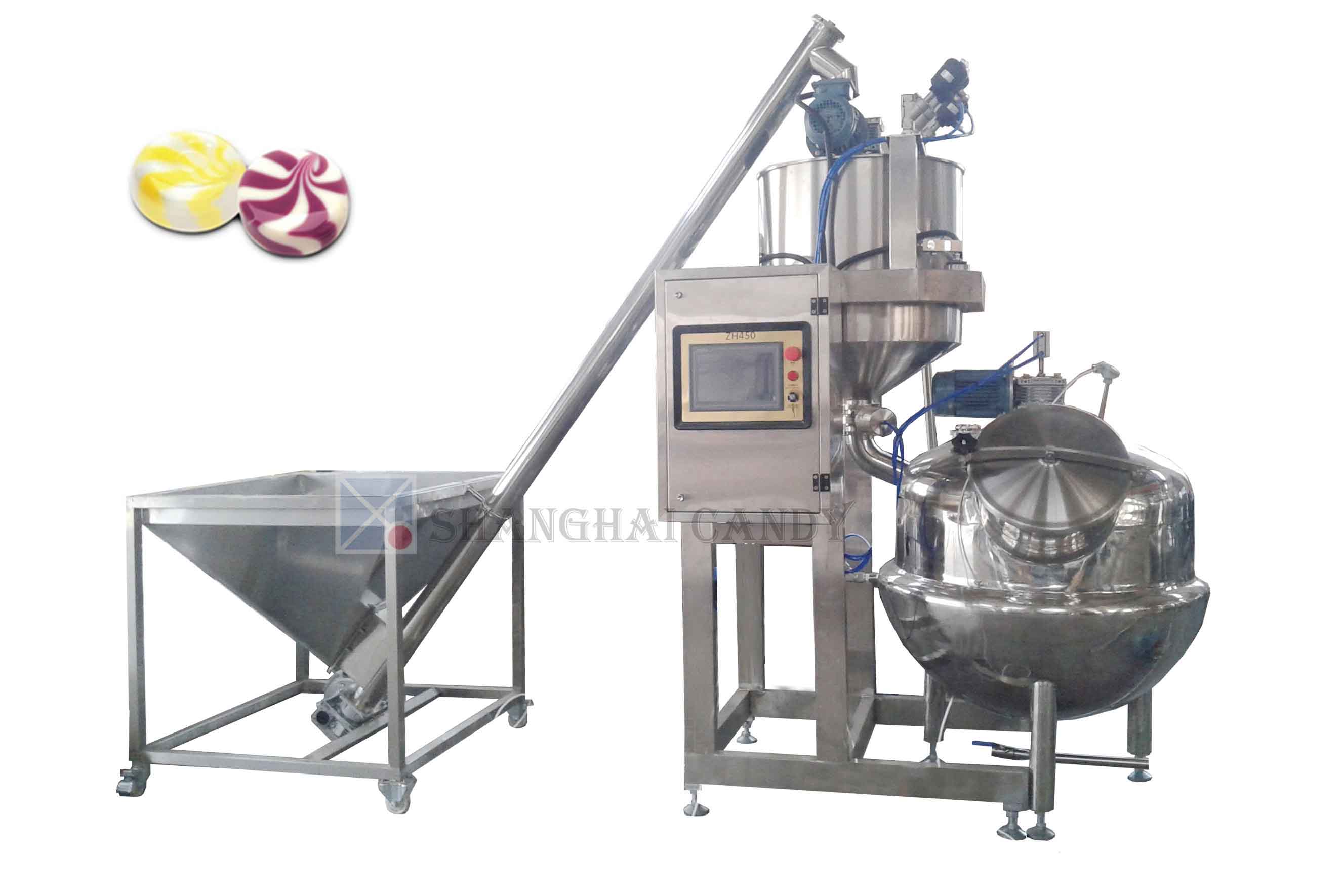

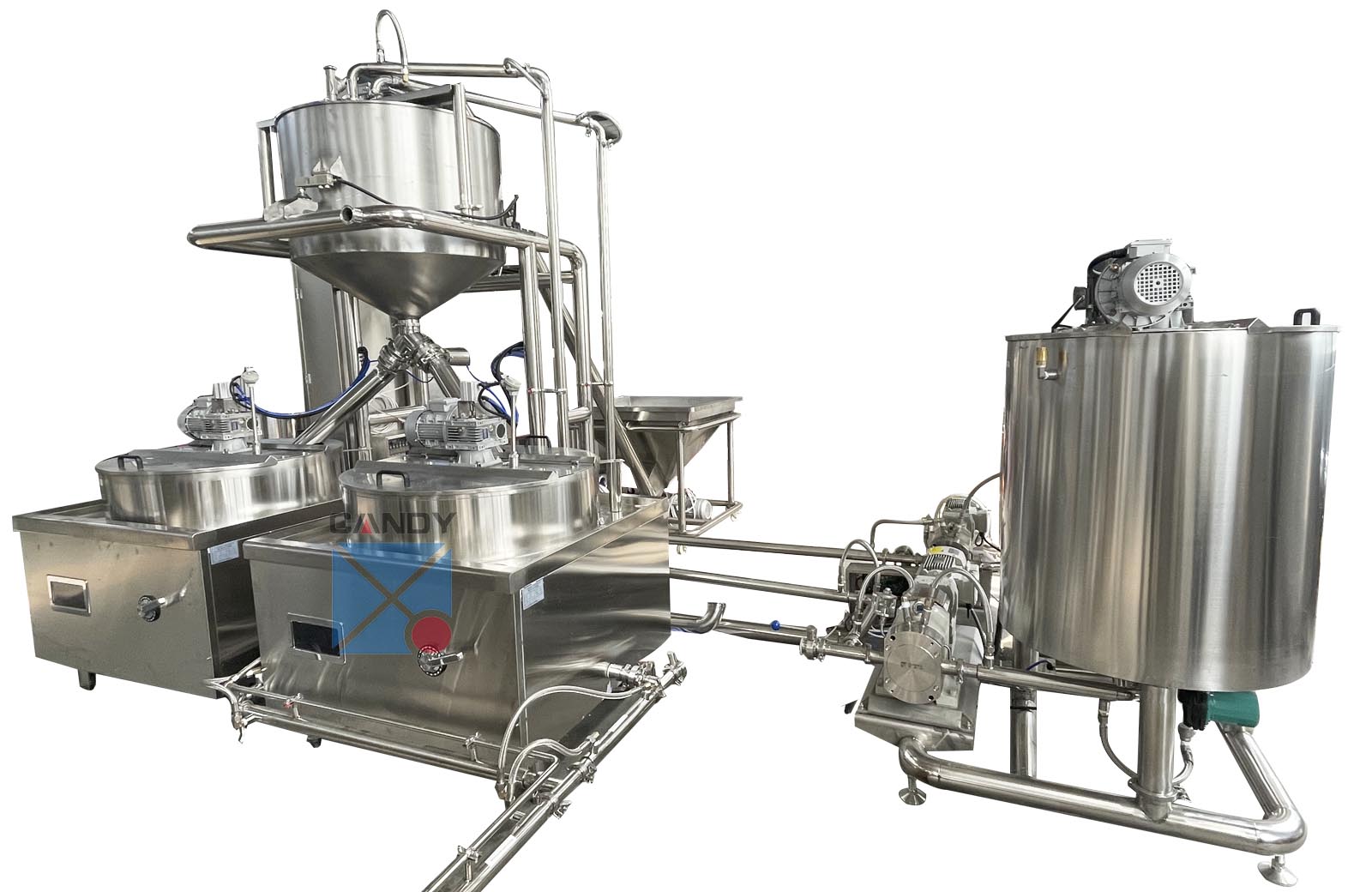

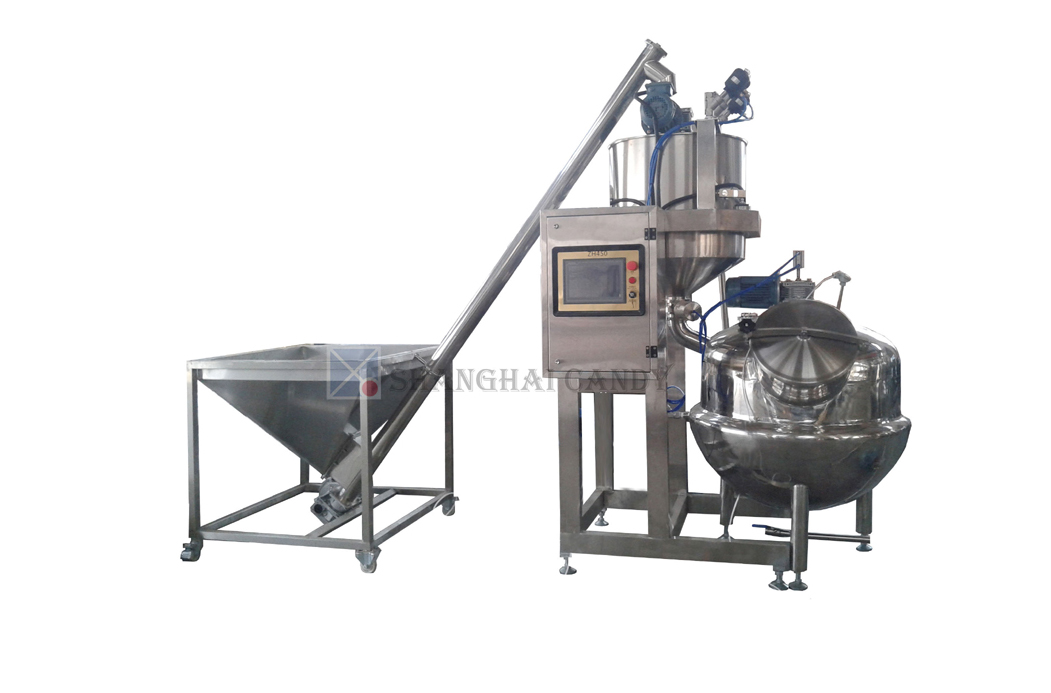

ZH400/600 Automatic Weighing and Mixing System
This machine offers automatic weighing, dissolving, mixing of raw material with inline transport to one or more production lines.
The sugar and all the raw material are automatic mixed through electronic weighing and dissolving. The liquid materials transfer are connected with the PLC system, and pump into the mixing tank after correction weighing process. The recipe can be programmed in PLC system and all ingredients are weighed correctly to keep on going into the mixing vessel. Once all ingredients are fed into the vessel, after mixing, the mass will be transferred into the processing equipment.Different recipes can be programmed into PLC memory for convenient use.
Parameter:
Model | ZH400 | ZH600 |
Capacity | 300-400kg/h | 500-600kg/h |
Steam consumption | 120kg/h | 300kg/h |
Stem pressure | 0.2~0.6MPa | 0.2~0.6MPa |
Electric power needed | 4kw/380V | 8kw/380V |
Compressed air consumption | 0.5m³/h | 0.7m³/h |
Compressed air pressure | 0.4~0.6MPa | 0.4~0.6MPa |
Dimension | 2500x1300x3500mm | 3000x1500x3500mm |
Gross weight | 800kg | 1000kg |
