Cereal bar machine
Cereal bar machine
Detail

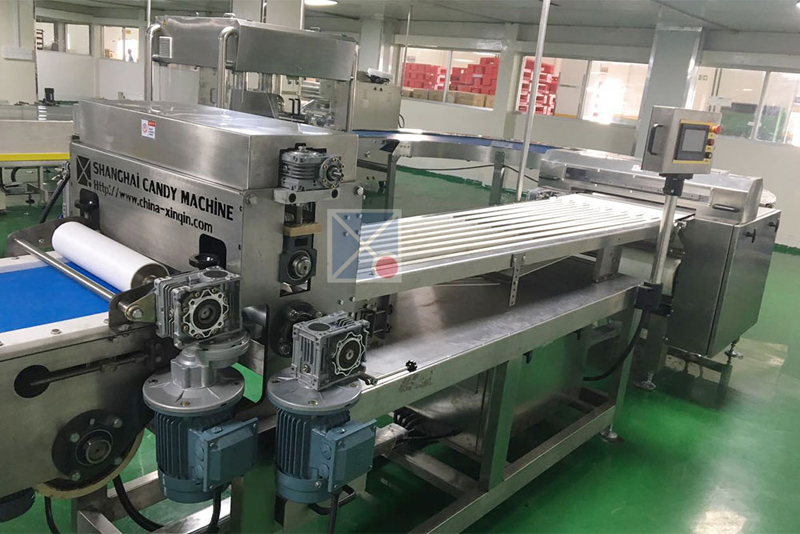

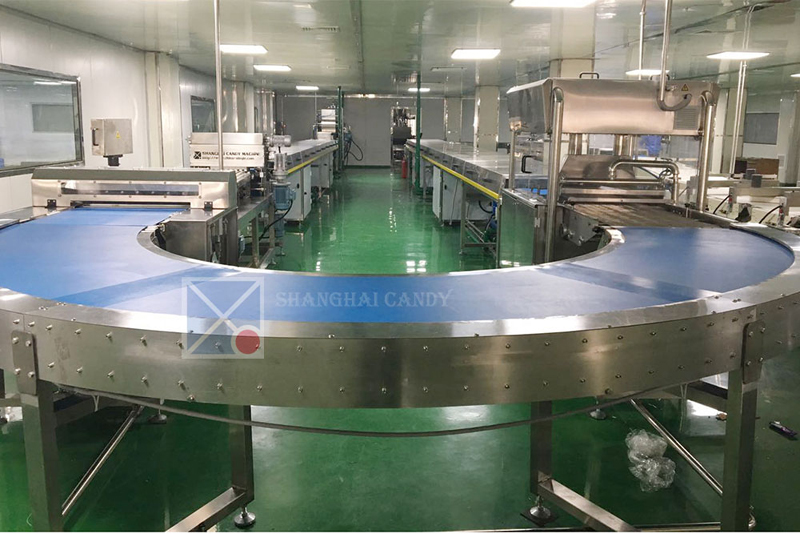

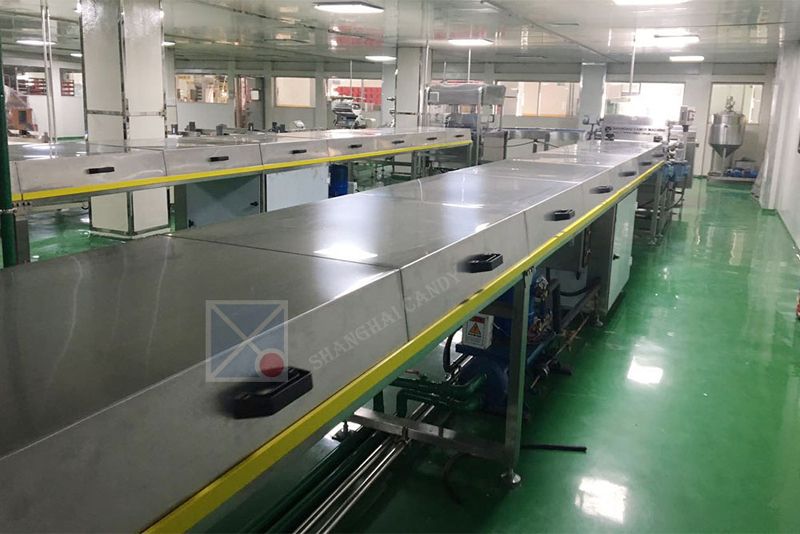

COB600 chocolate cereal bar machine
This equipment is used for production of all kinds of candy bar by automatic shaping. It mainly consists of cooking unit, compound roller, nuts sprinkler, leveling cylinder, cooling tunnel, cutting machine etc. It has the advantage of full automatic continuously working, high capacity, advanced technology. Coordinated with chocolate coating machine, it can produce all kinds of chocolate compound candies.
Machine specification:
Model | COB600 |
Capacity | 400-800kg/h (800kg/h max) |
Speed of cutting | 30 Times/min( MAX) |
Weight of product | 10-60g |
Steam consumption | 400Kg/h |
Steam pressure | 0.6Mpa |
Power voltage | 380V |
Total power | 96KW |
Compressed air consumption | 0.9 M3๏ผmin |
Compressed air pressure | 0.4- 0.6 ๏ผญpa |
Water consumption | 0.5M3/ h |
Candy size | can be made according to customerโs requirement |
